Simulation steps

Using the right simulation strategy at the right time

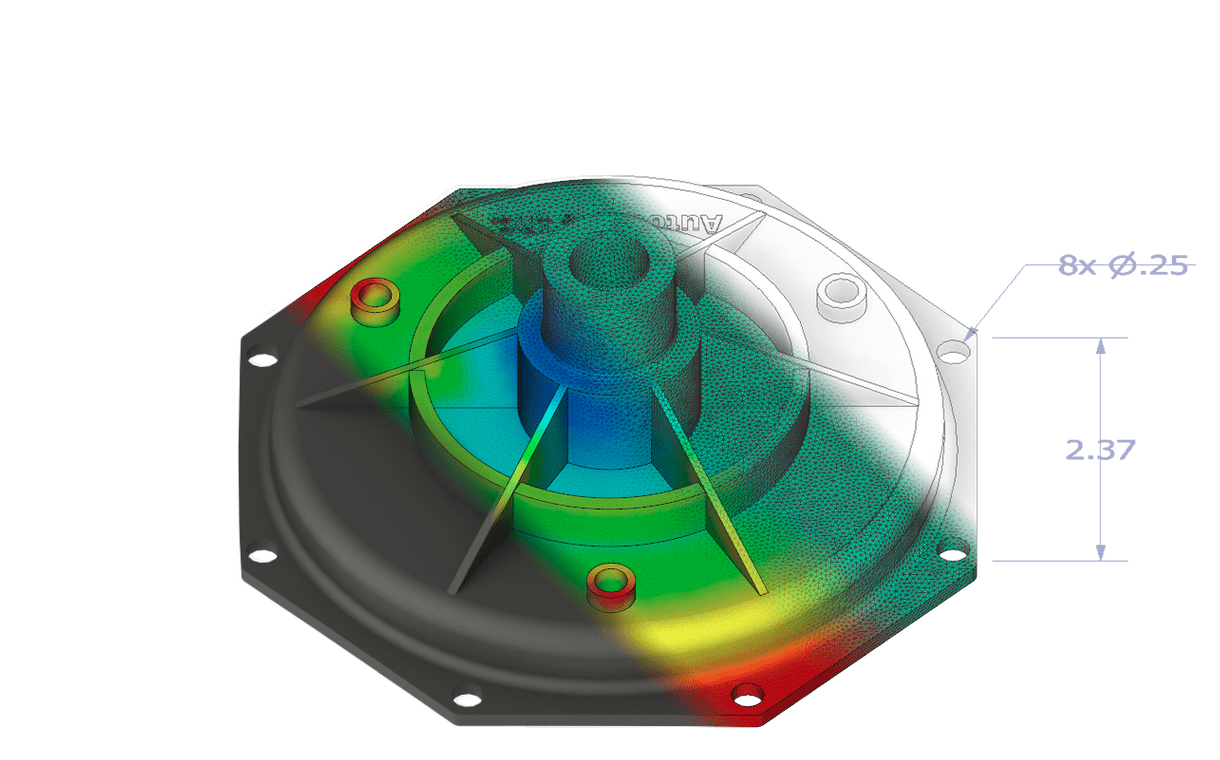

Part Design S1

In the phase of the part design the key points are set in the project. Design, function and costs take centre stage.
The component is simulated without any influence of a tool. This means that the entire focus is on the most important points and at the same time a reference is created. This reference could be achieved with an “optimal” tool.
  • Component Design
  • Material
  • Injection position
  • Processing parameters
  • Structural-mechanical calculations under consideration of process-induced properties

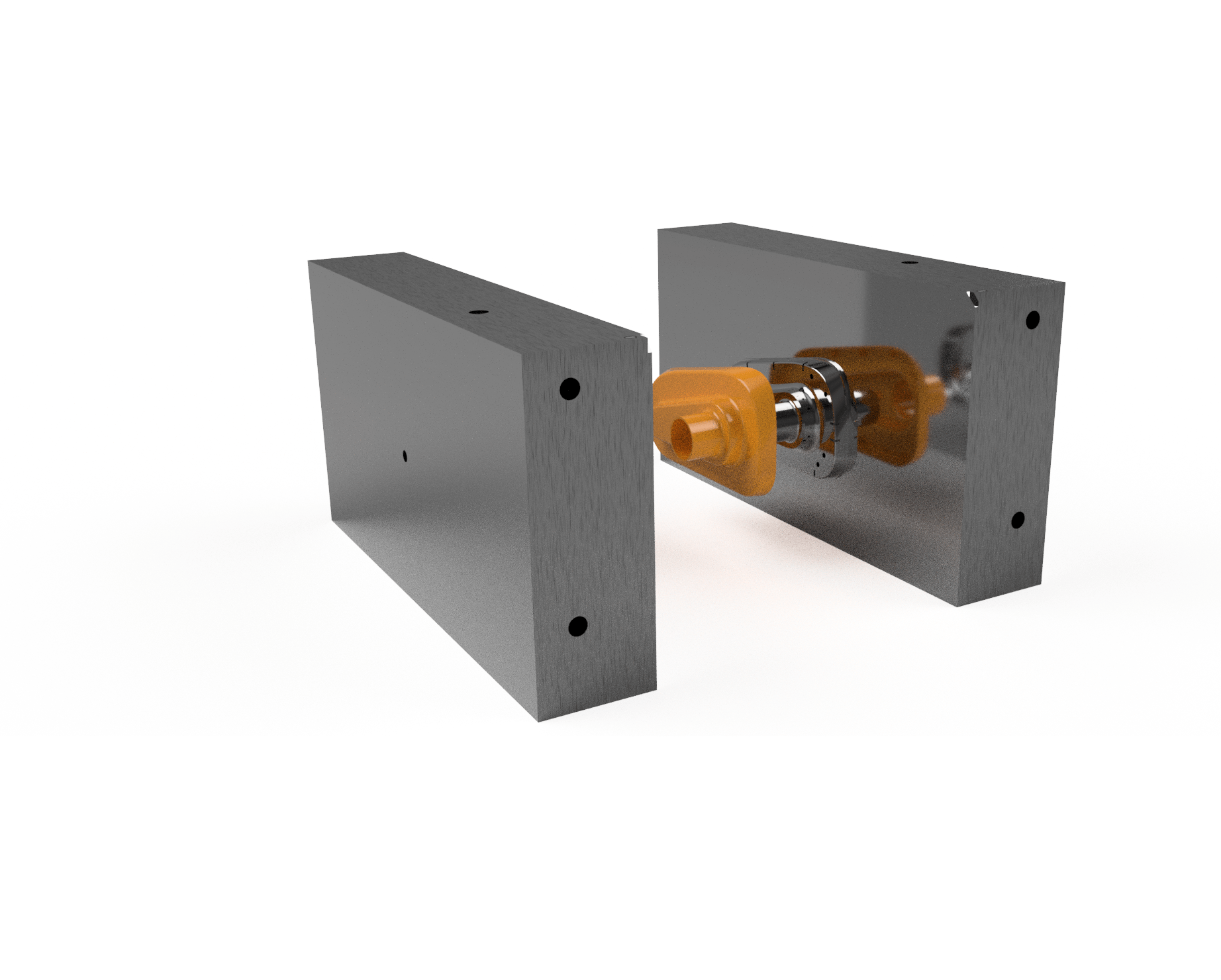

Tool Design S2

Virtual verification and optimization of tool influences before “going into the steel”.
The part design is fixed, the tool is to be built. The task now is to examine the tool-specific influencing factors on the component and to design them in the best possible way.
  • Tool influences
  • Gating system
  • Temperature control system
  • Processing parameters
  • Tool materials
  • Detailed structural-mechanical analysis of the component taking into account all influencing factors

Optimization S3

Optimization of the process or elimination of residual defects after the start of production (SoP).
Spritzgusssimulation & Strategie - Bauteilkonstruktion, Werkzeugkonstruktion und Optimierung
Production has already started in simulation level 3 (S3). With Design of Experiments, various parameters can be optimized to make the process even more efficient.
  • Process optimization after sampling
  • Optimization of existing processes
  • Error analysis (virtual verification of possible measures to eliminate residual defects)

Which solution is the right one for you?

You want to find out how much potential for savings can be achieved through injection molding simulation in your company? You would like to discover the right solution for your company? It’s best to give us a quick call or contact us via email. We will get back to you promptly.

In-house simulations are no option for your company?

Together with our engineering office Plastics Engineering Group we offer individual component, cooling and optimization simulations with comprehensive documentation, especially for companies without sufficient simulation capacities. If a software purchase is not feasible for you, rely on the expertise of our experienced simulation engineers!
