How do you create inserts in Moldflow?

How do you create inserts in Moldflow?

Did you know that you can create mold inserts within Moldflow Insight?

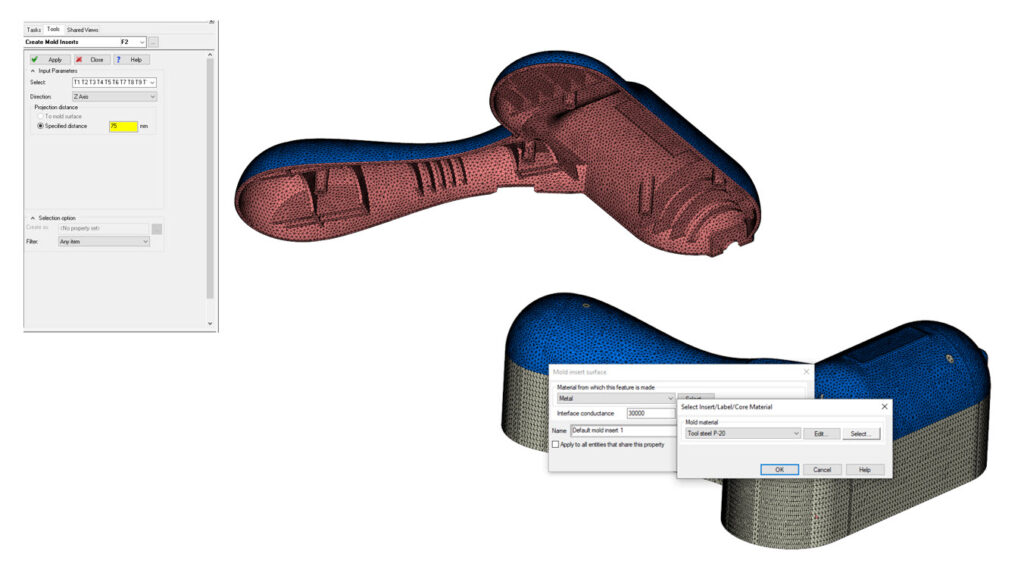

Creating inserts in Moldflow is easier if you first start with a Dual Domain part mesh. You can select an element on the cavity side – Expand to Triangles on the Same Surface – then Invert the Selection to grab all the triangles on the core side. You can then go to Geometry – Create – Inserts. Select the direction and distance for your insert and don’t forget to change the mold material and conductance from the default P-20/30,000 W/m2C.
If you are using a 3D mesh – you can switch to a 3D mesh and use the Generate Mesh/Mold Mesh options to mesh both the part and insert to 3D tetras.
While you can also import CAD or change the mold material by selecting a part element, creating inserts in Moldflow Insight can be easy!
How do you create inserts in Moldflow?

For more news about Moldflow and Fusion 360, follow MFS and Mason Myers on LinkedIn.
