How to combine your part CAD and 3D runner geometry!

How to combine your part CAD and 3D runner geometry!

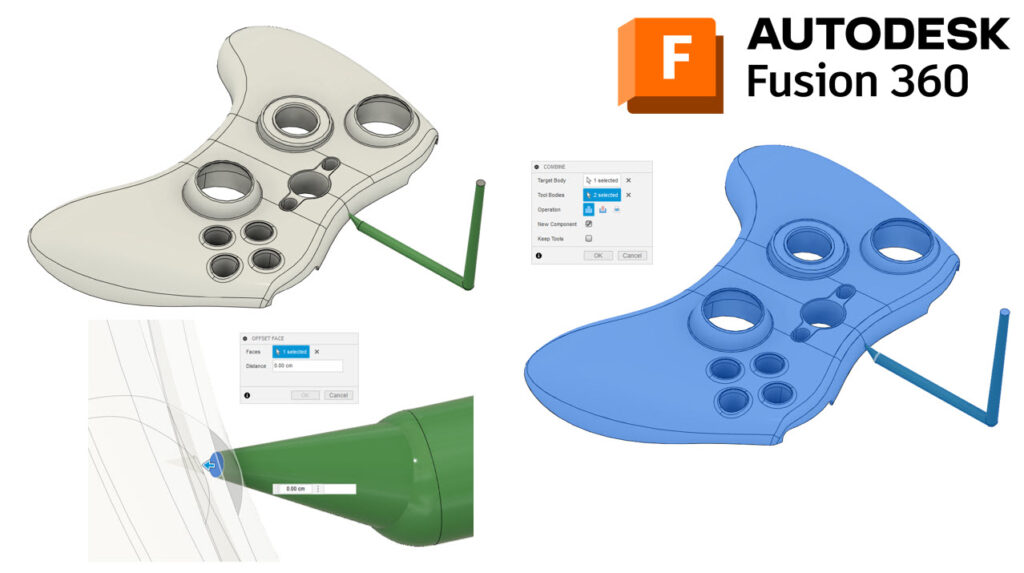

I like to have my 3D runners attached to my part model before taking them into simulation. I often use the Modify – Combine tool to merge my runners to my 3D part CAD.

Sometimes this does always work properly, especially if the gate does not intersect the part correctly. If that happens, I use the Modify – Press Pull command to extend the end of the gate into the part CAD. This will ensure the Modify-Combine tool works as expected.

How do you combine your part CAD and 3D runner geometry?

For more news about Moldflow and Fusion 360, follow MFS and Mason Myers on LinkedIn.
