I remember back in college, almost 20 years ago, we heard rumors of some company in Europe that was 3D printing metal. Today, 3D printing mold inserts is more common and allows us to create conformal cooling channels and mold inserts.
Conformal cooling channels can be created via 3D printing or gun-drilled channels that mimic the contour of our parting lines or plastic parts. We need to place these cooling channels in hotter areas of the mold.

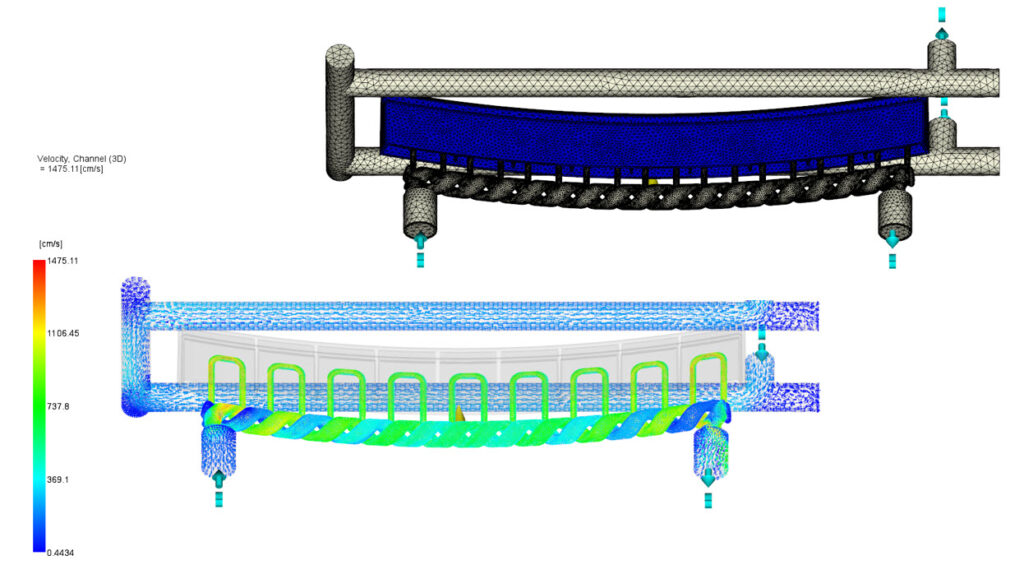

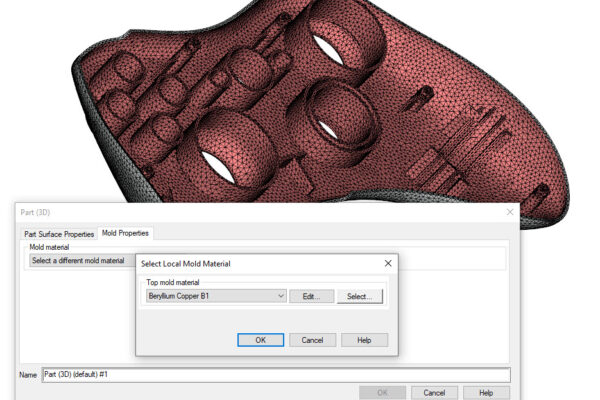

Moldflow can simulate your conformal cooling channels as well. Any channels that are too complex to model as beams, simply bring them in as a CAD body. You can change that CAD body to Channel 3D and assign 3D inlets & 3D outlets TO THE CAD BODY before using the 3D channel mesh option. You can then set your water temperature and flow control to the 3D cooling inlets.
You have to be Cool(FEM) to use 3D Channels so feel free to use Average within Cycle or either of the transient cooling options. We offer 2 training days on cooling simulations in the Moldflow Advanced Functions training series. You can find more information on the training page. Dates are shown in the training calendar, additional dates are also possible in case of further requests, please feel free to contact us. Our interpretation training is also suitable for interpreting simulation results, which can also become very complex for conformal cooling.

For more news about Moldflow and Fusion 360, follow MFS and Mason Myers on LinkedIn.
