How to use the Fluid Volume tool in Fusion 360?

How to use the Fluid Volume tool in Fusion 360?

One of the first Fusion workflows that I was taught when I joined Autodesk was the Fluid Volume command to extract 3D runners and cooling channels from a mold block.

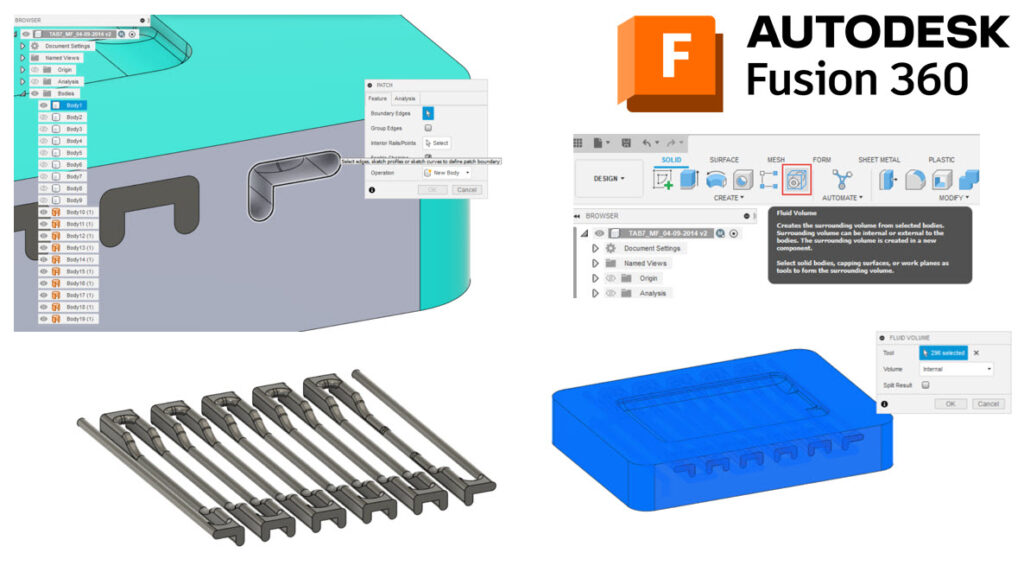

I start by isolating the plate or block that contains the cooling lines. I then Patch all the inlet and exit holes for the water lines (Surface Tab – Create – Patch). You can simply click on each outline of the cutout.

Once all the inlets/outlets are patched, I move back to the Model tab – Create – Fluid Volume. I highlight all the patches and the solid body and switch the Volume to Internal.

Now I have a solid of the cooling lines that I can then take into Moldflow.

Have you ever used the Fluid Volume tool in Fusion 360?

For more news about Moldflow and Fusion 360, follow MFS and Mason Myers on LinkedIn.
